Description

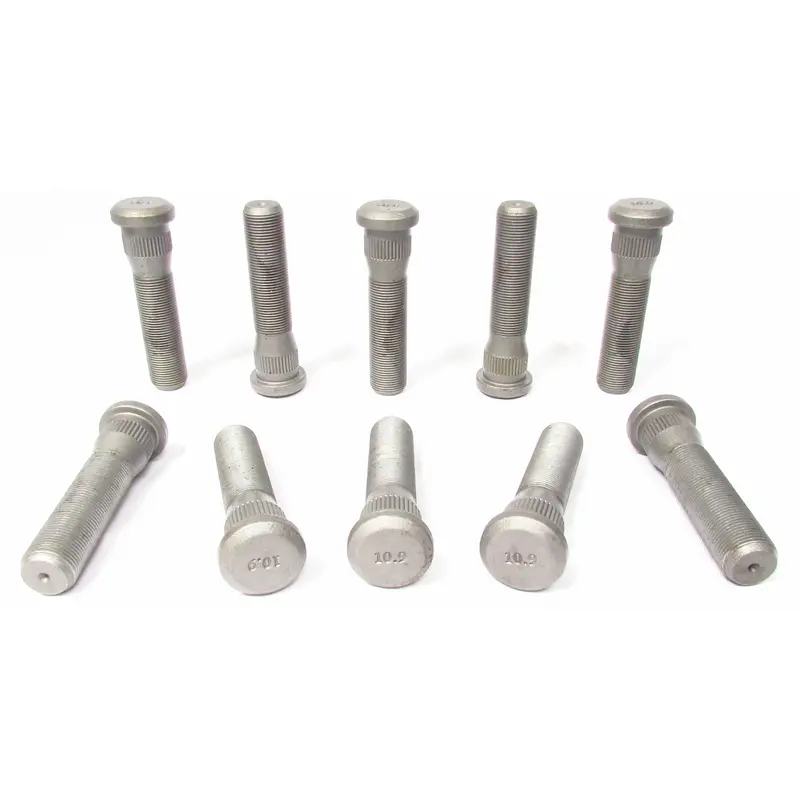

Fortpro M22 x 1.5 Metric Serrated Drive Wheel Stud F286688 designed to provide a secure hold on vehicles with M22 x 1.5 metric threads. Made from high-strength materials, these studs ensure a solid connection between the wheels and wheel hubs, improving vehicle stability and safety.
Specifications:
- Brand: Fortpro
- Part Type: Wheel Stud / Metric Serrated Drive Wheel Stud
- Vehicle Type: Semi-Trucks, Heavy-Duty Trucks
- Part OEM: E6035, E-6035
- DIN / ISO Grade: 10.9
- Type: Headed
- Metric Thread Size: M22 X 1.5-6g
- Body Length (E): 0.72″
- Body Diameter (G): 0.975″
- Length from Under Head (B): 3 15/16″
- Head Diameter (F): 1.31″
- Head Style: Round
- Head Thickness: 0.36″
- Thread (A): M22 x 1.5
- Thread Diameter (H): 22.0 mm
- Wheel End Thread Direction: RH (Right Hand)
- Threads per Inch: 1.5 per mm
- Thread Length (C): 2.19″
- Serration: Serrated
- Serration Length (D): 0.41″
- Serration Diameter: 1.015″
- VMRS: 018-003-009
- Item Package Quantity: 10
- Notes: Grade 10.9 is the metric equivalent of Grade 8
CrossReference:
- Automann: 2016151, 2016151WE, 2016251
